Ratchet Cutting

This blog post records my setup for cutting ratchet teeth. I having been building reels one at a time, so this setup is needed for each reel.
IMG_5419

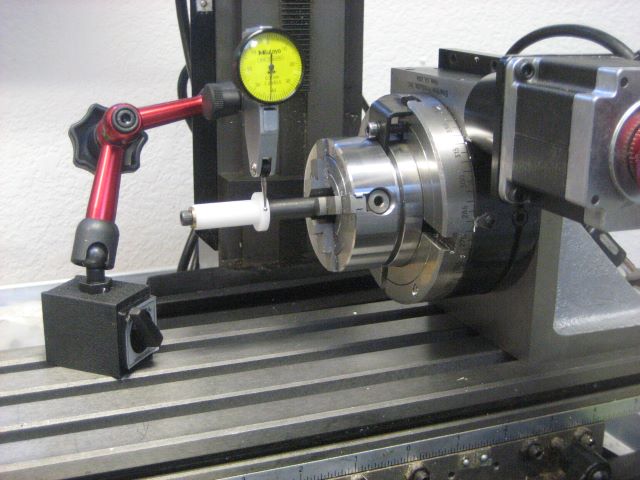

The bushing/ratchet blank is held on a mandrel in a 4 jaw chuck so it can be precisely centered on the rotary table.

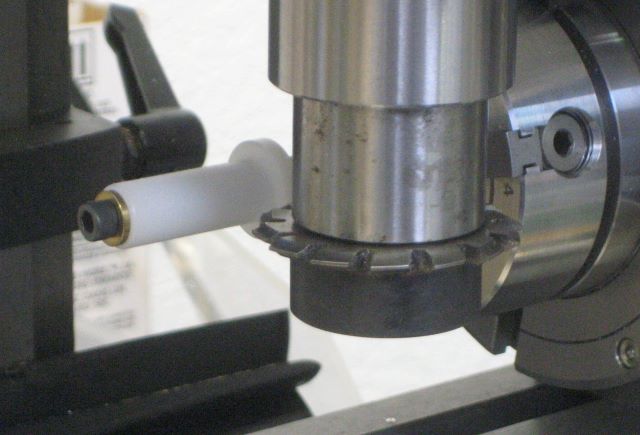

Put the cutter in front of the work piece so that fuzzy burrs are on the ratchet face that can be trimmed.
IMG_5421

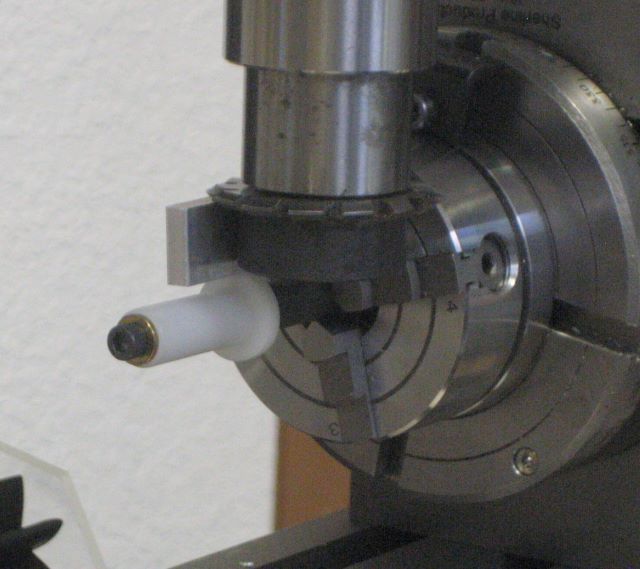

To get the cutter at the correct height, use a gage block as a feeler gage between the blank and the cutter. Then lower the cutter by a calculated amount.
My “gage block” is a scrap of aluminum milled to 0.582 inch height.
IMG_5420
For the 23 tooth ratchet (3 weight reel) the blank is 0.694 diameter and the cutter is .121 thick. So lower the cutter by (.694 + .121)/2 + .582 = .989 inch.

For the 36 tooth ratchet (5 weight reel), (1.056 + .145)/2 + .582 = 1.182 inch.

Depth of cut for the 36 DP ratchets is 2.157/36 = 0.060 inch.

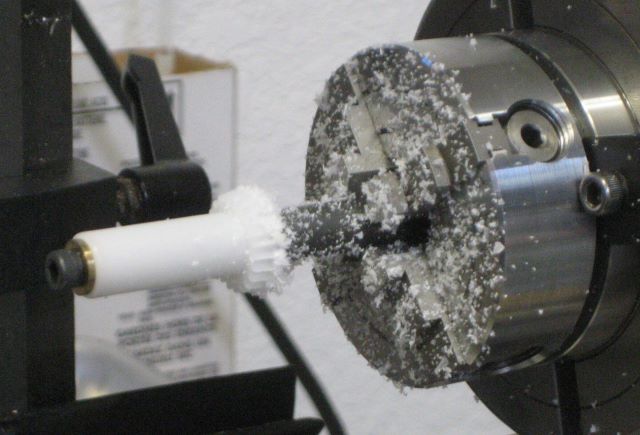

After milling, the Delrin ratchet has fuzzy burrs that have to be removed.
IMG_5422

IMG_5423
So make the ratchet blank thicker than required. A facing cut will remove much of the burr, but hand clean-up will still be needed. I use a “de-sprue” nipper from MicroMark for this.
