Compliance Reduction

The problem that I am having with my MiniLathe is that the support of the cutting tool is too compliant. It is really disconcerting when a cut-off blade dives under the workpiece. Chatter is a problem with all types of cutting tools.

I believe that most of the compliance is in the compound slide. I have worked with lapping the dovetail and adjusting the gib, but cannot get satisfactory performance. When I have to part off, I would much rather use my Sherline lathe.
IMG_5414
My solution is to remove the compound whenever possible. Here are two fixtures that allow just that.

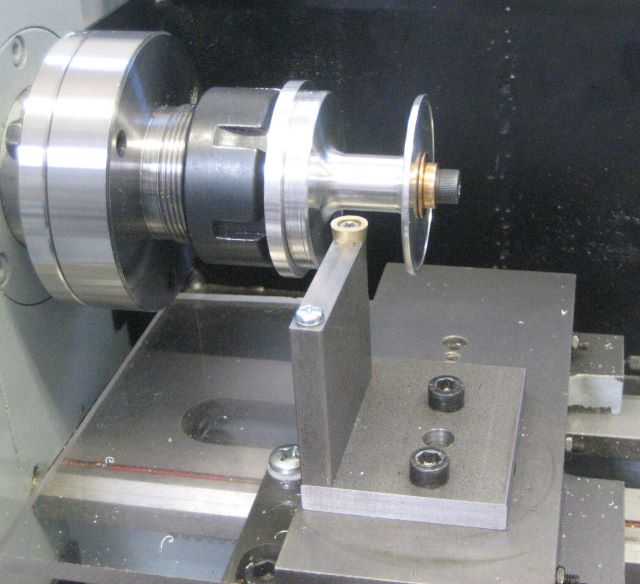

The first one carries a 3/8 inch diameter round carbide insert. I designed it especially for finishing the inside surfaces of a reel spool.
IMG_5416
The insert support is 5/16 inch wide so there is clearance on the sides and the front of the insert and I can use it on all interior surfaces.

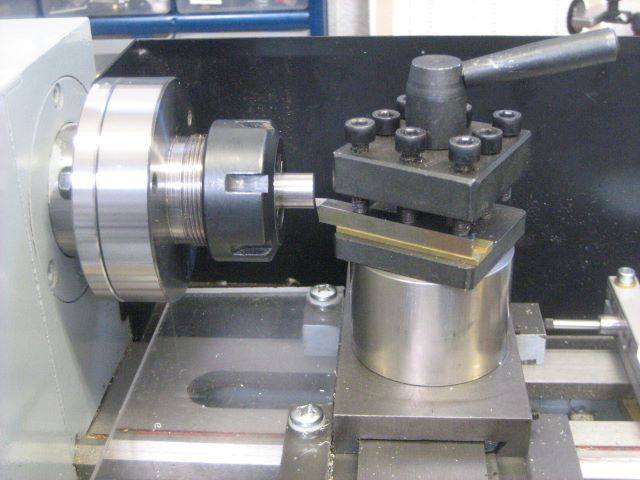

The other fixture is just a spacer that replaces the compound.
IMG_5418

Having lost the compound leadscrew, I rely on a dial indicator for axial position.
IMG_5417
There is a problem here, of course. I cannot make fine adjustments and close the half nuts to lock the carriage axially. This is OK for some operations but allows carriage creep for others. So I still need to make a positive carriage lock.

Advertisements
This entry was posted in Fixtures, Turning. Bookmark the permalink.

One Response to Compliance Reduction

  1. Jeff says:

    Yes…the spacer block approach seems to be common with the mini-lathe.
