Bronze Frame Reel – Final

The last drawing covers all the remaining parts for the click mechanism.
dwg1091
The kink in the spring biases the pawl for left or right hand wind. There is a blog post on spring bending, 13 June 2016.
The “pawl shim” is just a washer that spaces the pawl away from the back plate. It is supposed to help the pawl move freely. Info on this part was posted 8 May 2014.

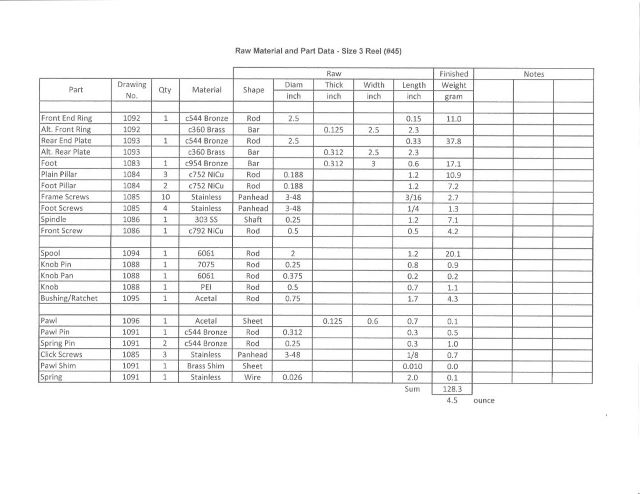

Finally, here are material lists for the two reel sizes.
matl_5wt
matl_3wt
