Wired

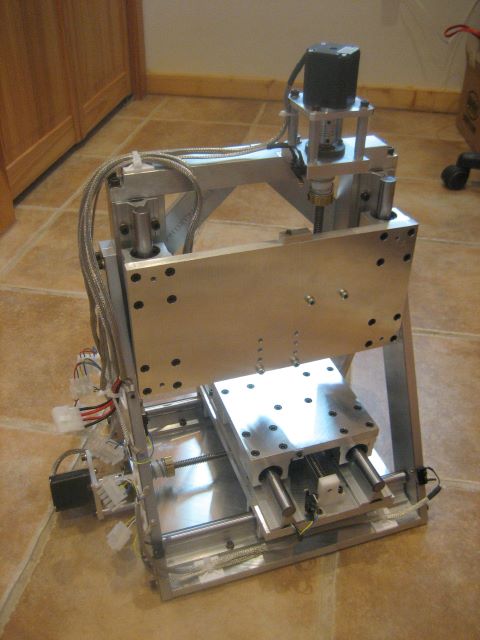

I now have all the wiring anchored to my CNC mill.
IMG_5009

Quite a bit of the labor was in mounting the limit switches.
IMG_5011

The engraving mill will connect to its control panel by 7 four pin connectors: 3 for step motors, 3 for sets of limit switches, and one for the spindle motor.
IMG_5014
