The Motion Controller

I have purchased the motion controller and stepper driver for my engraver.

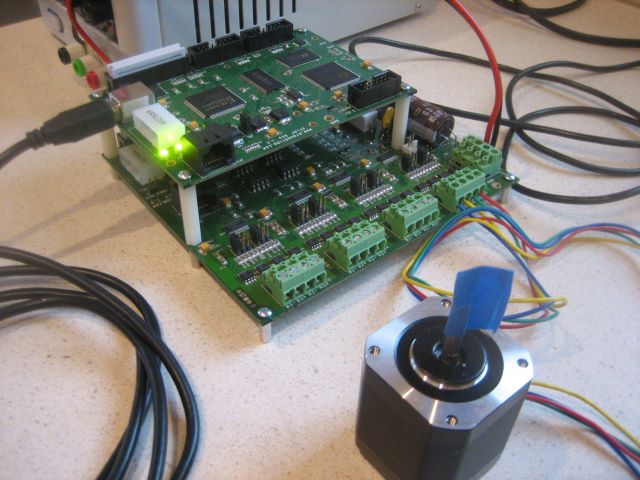

IMG_5001
The two boards are KFLOP and KSTEP from dynomotion.com. They communicate together by a 26 line ribbon cable, and controller KFLOP talks to a PC console by USB.

What I find remarkable about the stepper driver is that the power devices have no conventional heat sinks. Each SO-8 package here contain two FETS. There are 8 H-bridges to run 4 steppers.

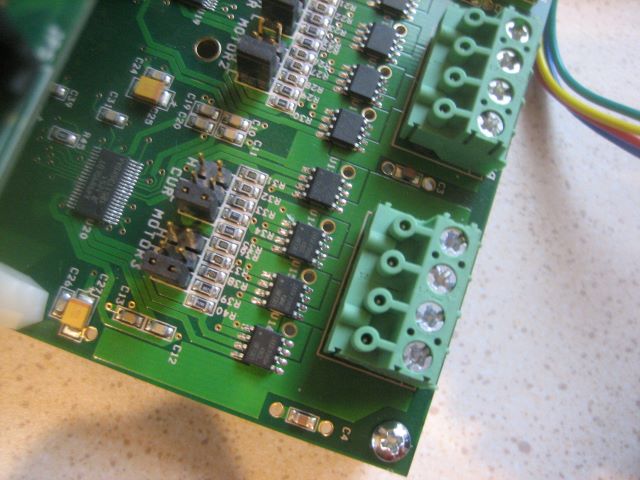

IMG_5002
KSTEP can be jumper programmed to run a motor as large as 5 amps. My steppers are NEMA 17 size and rated 1.5 amps.

Dynomotion, free of charge, provides all the software needed for CNC operations.

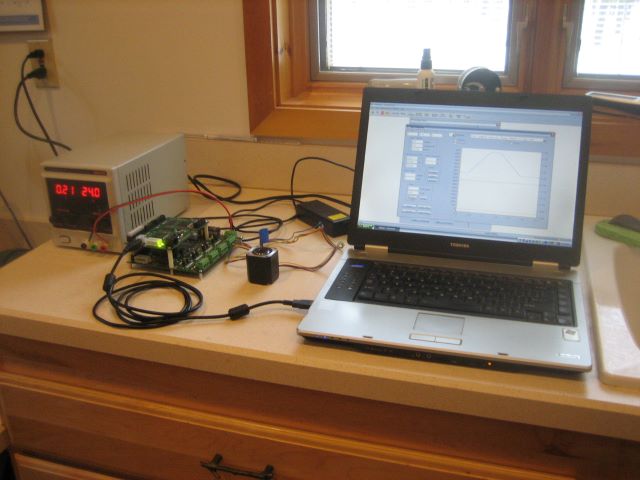

IMG_5000
Program “Kmotion” is used for system setup and provides the integrated environment for C programming. Program “KmotionCNC” is the controller that runs G code. Programming in C is not really needed; the setup established with Kmotion screens is saved (as a machine written C program) to initialize the controller at each power-up.
The Dynomotion proprietor is a California resident and is quite pro-active in answering all questions by Email, Yahoo Group, or CNC Zone forum. No Chinglish interpretation needed.
