New Foot Fixtures

My new reel design has a one piece frame, so the foot has to attach in a different way. Previously, the foot had a tooling hole that allowed simple clamping on two special fixtures. Without the tooling hole, clamping is more elaborate. The new design encompasses 6 different reel sizes, and this affects the clamping methods.

My fixture for cutting a radius at both ends was shown on 14 Feb 2012. The part is now held down with a strap, rather than a bolt through.
IMG_4298

The joint of the foot to the frame is a curved surface. I had to make a new fixture to cut the arc on the foot.
IMG_4299
This fixture is adjustable to cut a range of radii.

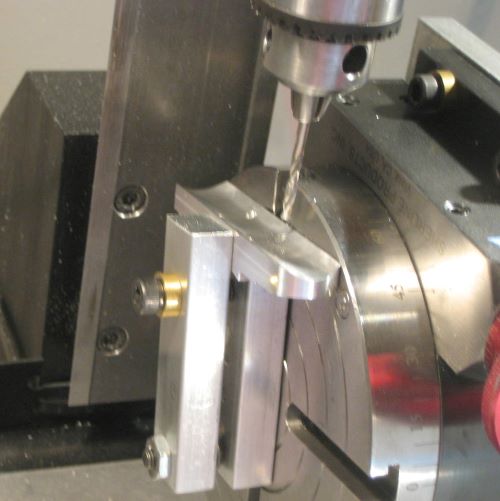

The foot is now secured to the frame by four radial screws. I needed a new fixture in order to drill the foot.
IMG_4303
The end of the right clamp bar (the one next to the rotary table) is curved to fit the top on the foot. Each different radius requires a new lower bar.

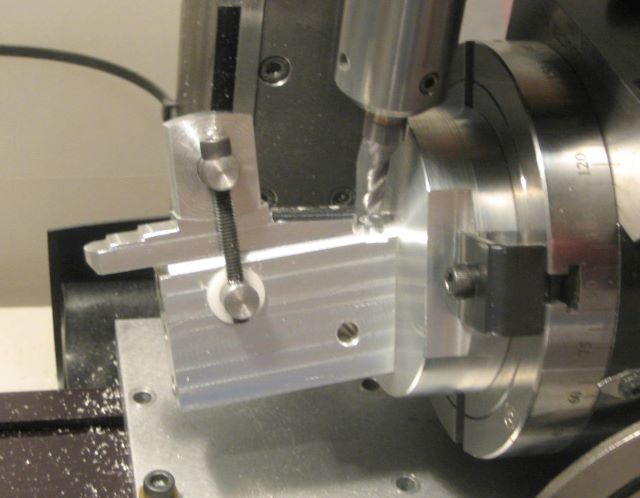

Finally, my old foot fixture (28 May 2011) needed a special clamp to hold the part in place.
IMG_4306
I made upper blocks of several different radii .

Advertisements
This entry was posted in Foot. Bookmark the permalink.

2 Responses to New Foot Fixtures

  1. Keenan says:

    I’m really thinking that a rotary table and an angle plate need to be one of my next tool purchases. I can see that those two things alone open up a whole new set of possibilities for machining parts. Fascinating…

    • dave49 says:

      Keenan,
      Unquestionably, the rotary table is the most valuable Sherline accessory when it comes to making reel parts.
      When I brought out my first set of reel plans, someone on the Reelsmithing forum asked how the reel might be made using only a lathe. I attempted to answer, but have since realized that the approach was wrong. It would be much easier to make a reel with just a mill, provided that you had the rotary table.
      Because the Sherline mill and lathe use the same headstock, it is possible to turn parts on the mill. I have done this when I have made screws with a spherical surface on the head. None of my reel parts require turning between centers, so a tall toolpost and a chuck convert the mill into an adequate lathe.
      Dave
