Aluminum Frame Reel

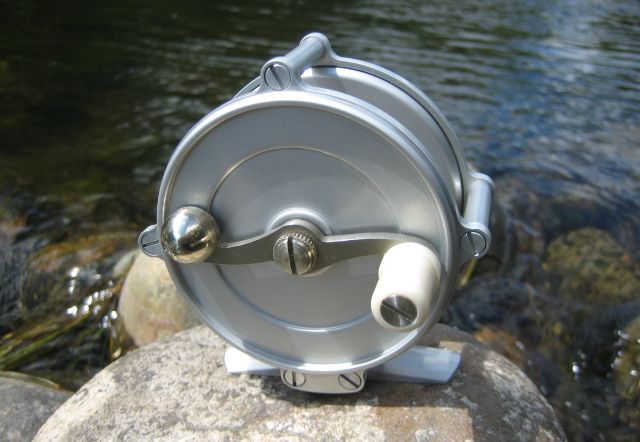

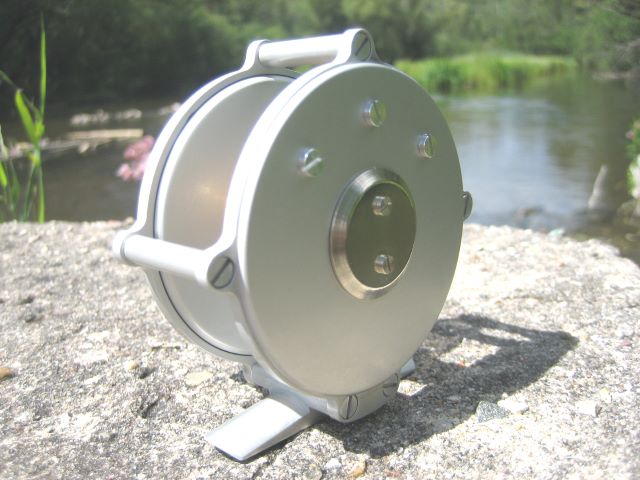

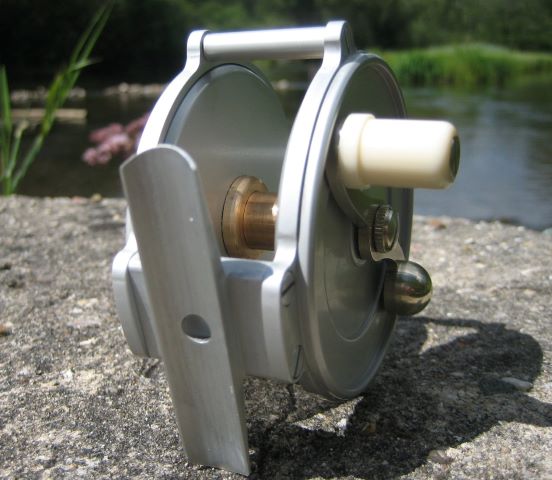

Here is my recent project, just assembled.
IMG_3176
Reel 16
IMG_3171

IMG_3173

IMG_3174

IMG_3177

IMG_3180

frame and spool ends – aluminum, clear anodized
shaft – bronze
crank and bearing cap – nickel silver
sleeve bearings – Delrin AF

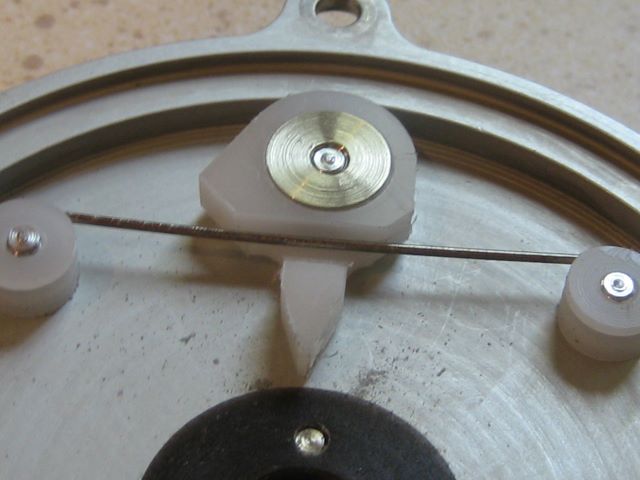

ratchet and pawl – Delrin, biased for LHW
knob – alternative ivory
total weight – 4 & 7/8 oz.
line – 5 wt.
end plate diameter – 2.73 inch
over pillar lugs – 3.22 inch
width between spool plates – 0.85 inch

The antique model for this reel can be seen here.
