Faceplate for Minilathe

I was working on a new reel design, and realized that several operations would best be done with the parts clamped to a faceplate.
IMG_5532

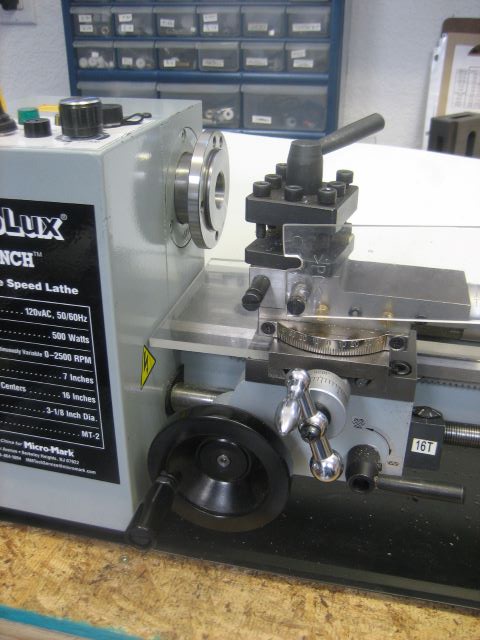

The problem, however, is that on my Minilathe, the carriage cannot travel far enough left to get the toolpost in position. The travel is OK for a part held in a 3 jaw chuck, but not for a part clamped to a thin faceplate. The large handwheel for carriage travel interferes with the box of variable speed drive electronics.
In this picture, you can see that I long ago added an acrylic plate as a chip shield. It also restricts carriage travel, but is no worse than the handwheel.

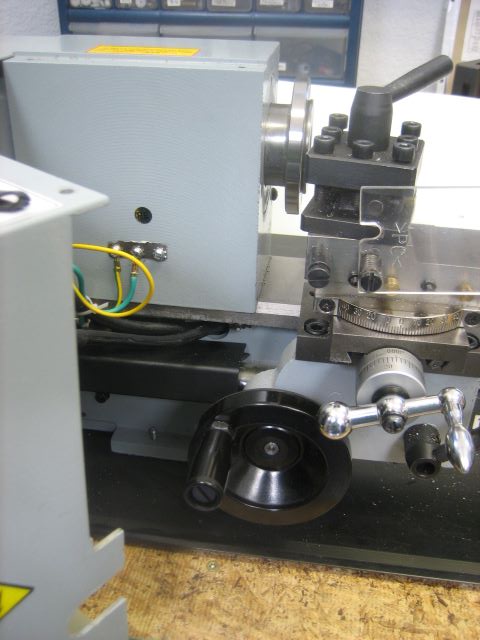

The first thing that occurred to me was that the electronics box needed to be relocated. It was really stupid of the designer to put it in this position.
IMG_5533
The rack and the leadscrew are both capable of moving the carriage far enough left to allow faceplate use, it is only the electronics box restricting travel.

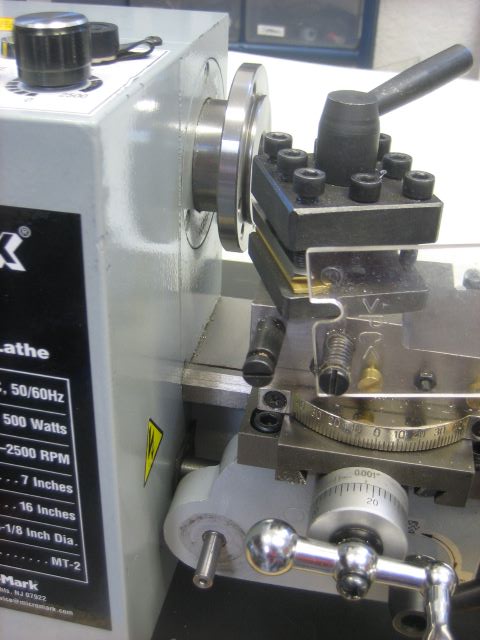

But then I saw that it would be much easier to just move the handwheel.
IMG_5534

So I made this extender for the handwheel shaft.
IMG_5541

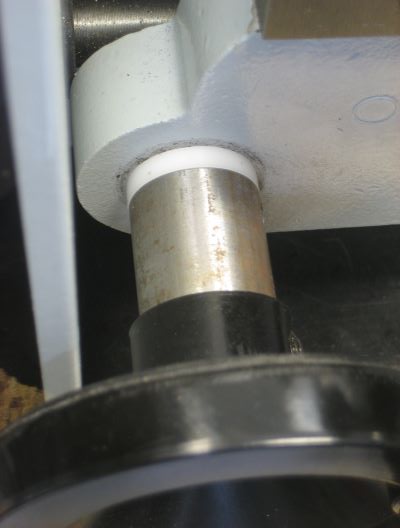

Here the extender is installed.
IMG_5540

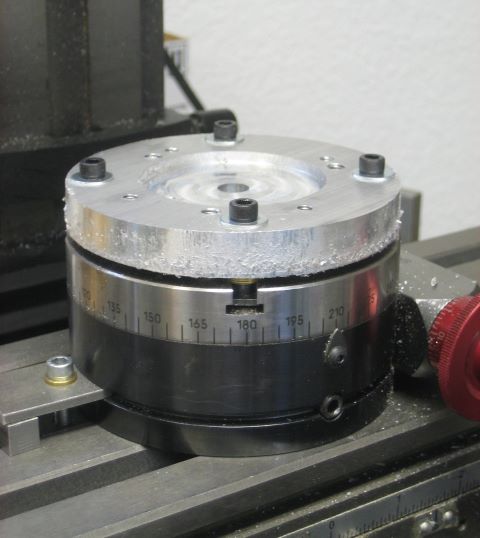

I made a 4 inch diameter faceplate on my mill.
IMG_5535

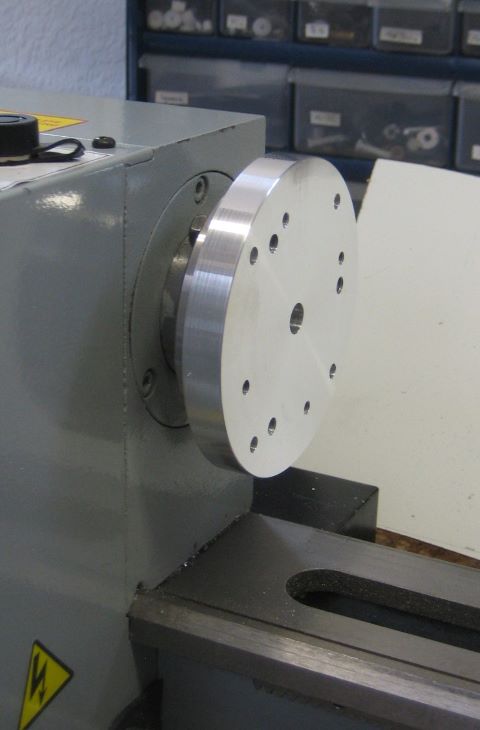

Here is the faceplate installed and finish turned.
IMG_5542
