X-Y Table

This is the next step toward a CNC engraver, a complete X-Y table.

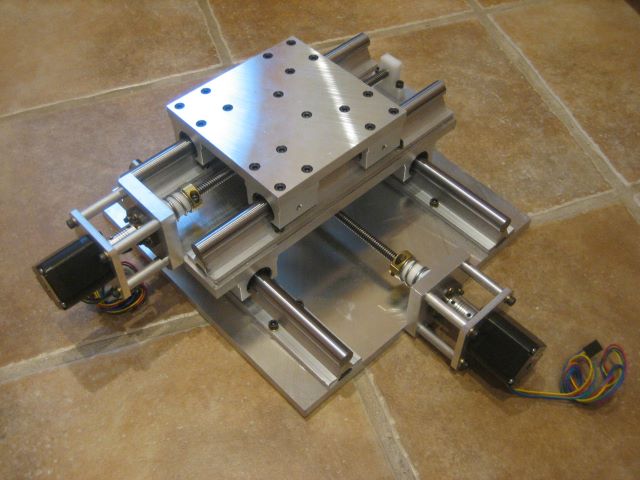

IMG_4991
The structure here is three sheets of 1/2 inch thick MIC-6: 6×6, 6×12, and 12×12 inches. They provide a 6×6 work surface with motion of nearly 6 inches in each of two directions. Significantly, the heaviest pieces have the least motion.
The next step will be construction of a gantry to support the z-axis.
