Chuck Centering

On a fly reel, the radial clearance between the spool ends and frame should be as small as possible. It is probably not practical that this clearance be as small as the diameter of the finest tippet that might be used, but a small clearance at least reduces the chance of tippets going where they should not.

On my current reel design, there are six parts for which concentricity of features is important in avoiding a rub of spool end on frame. So I am always concerned with maintaining concentricity while making parts.

Recently I read on a hobby machining forum a comparison of Sherline’s chuck centering system to that of another manufacturer of small lathes. The Sherline system was held to be inferior because it lacked a pilot diameter where the chuck fits on the lathe spindle. Here is what is under discussion.
IMG_4002
The thread on the Sherline spindle is 3/4-16 UNF. When a chuck is screwed on, it stops when it comes into contact with the flat surface just behind the thread. So we depend on the thread itself to make the chuck concentric with the spindle. Apparently the other manufacturer provides a pilot diameter between the thread and the flat surface. Threads are cut with non-negligible clearance (for easy fit), so is there a flaw in the Sherline approach?

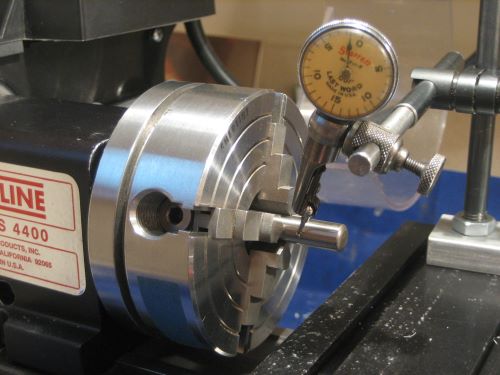

I decided to make an empirical investigation. Here I have centered a pin in my 4 jaw chuck to within 0.0001 inch. Then I removed the chuck and reinstalled it five times. Each time the runout on the pin remained at about 0.0001 inch. I am sure that the thread clearance is much greater than this.
IMG_4001
So by this test, I find no deficiency in Sherline’s approach. My theory is that the thread acts as a taper. As long as we avoid trapping metal particles in the thread, the chuck centers as it is tightened. As a point of machine design, observe in the first photo that behind the thread and in front of the flat surface there is a short length of spindle for which the diameter is that of the thread root. This ensures that there is no incompletely formed end to the thread that might throw the chuck off center. I believe that this feature is called a spigot.

I think that any pilot diameter with a close enough fit to provide 0.0001 inch centering would be difficult to use; the chuck would consistently bind on the pilot as it was screwed on.

The Sherline 4 jaw chuck can also be used as a milling vise (see this blog, 7 Feb 2012). It mounts to the mill’s rotary table with the adapter shown here.
IMG_4005
This adapter fastens to the rotary table with a 3/8-16 UNC thread. This interface also has a 7/16 pilot diameter, but the clearance is loose enough that installation and removal are not difficult..

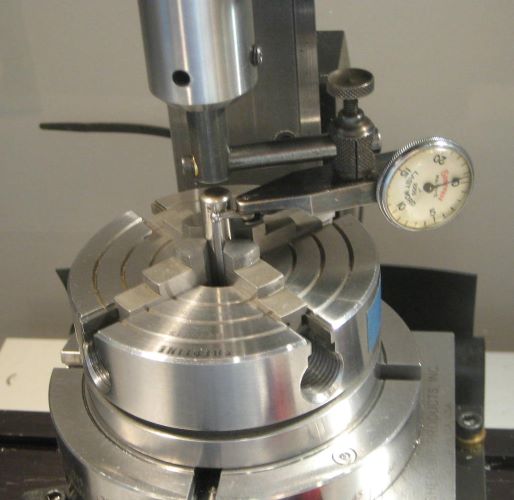

When making reel end plates and spool ends, I frequently switch the chucked work from mill to lathe and back again. So TIR on the rotary table (for a chucked part that has been centered on the lathe) is of concern. Multiple installations of the chucked pin on the rotary table show a consistent TIR of 0.0014 inch.
IMG_4006
So the centering error on the mill rotary table is about 0.0007 inch. That is OK for making reels. If I were making watches, I would be concerned.

Update 22 May 2013: I was wrong about terminology. The smaller diameter behind the threads is a relief, and more specifically a thread relief. So at the nose of the spindle we have threads, a relief, and (per Alan, below) a register.
A spigot is of course a beer or water tap. But a spigot joint is a particular type of pipe joint, and the term applies to some circular joints in machinery other than pipe joints.

Advertisements
This entry was posted in Work Holding. Bookmark the permalink.

3 Responses to Chuck Centering

  1. Regarding your ‘spigot’ on the lathe spindle: I believe that the flat surface after the threads is called the ‘register’ and is there for the purpose of matching up with a like surface on the back of the chuck. This is what pulls it into ‘register’ and accounts for the accuracy.

    In my shop of the past I had to machine some face plates to be able to attach other chucks and getting the register (as well as the mating OD of the face plate was part of the ‘challenge’!

  2. dave49 says:

    Alan,
    Thank you for providing me with terminology. So my take on this is that the threads and the diameter behind the threads (slightly smaller than thread root diameter) form a “spigot”. Behind these is a flat surface called “register”. If the register were not perfectly normal to the axis of the threads, we would not get proper centering of the chuck. The chuck itself also has a register, and it is just as important as that of the spindle.
    22 May 2013: Terminology wrong. Substitute relief for spigot in the above.
    Dave
