Reel #5 by Terry

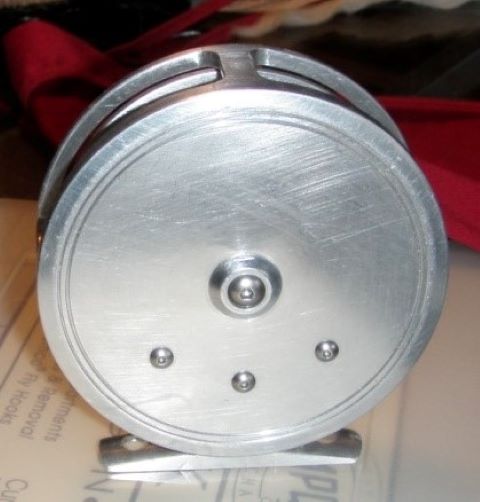

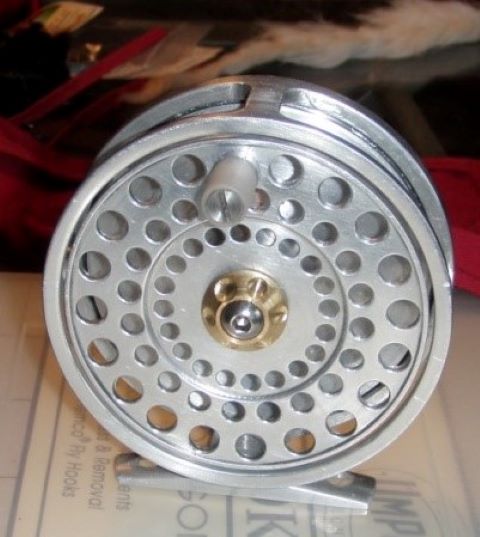

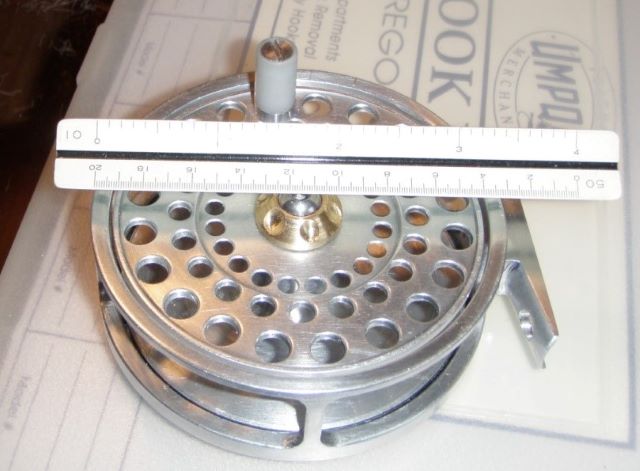

This one is a 3.5 inch trout reel, similar in design to previous work by Terry, but an improvement in details.

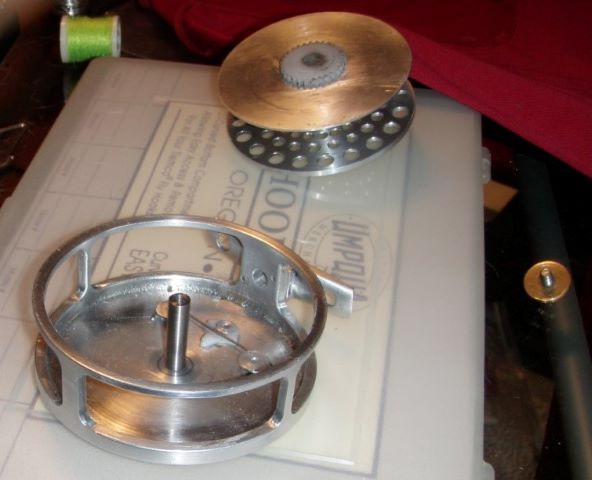

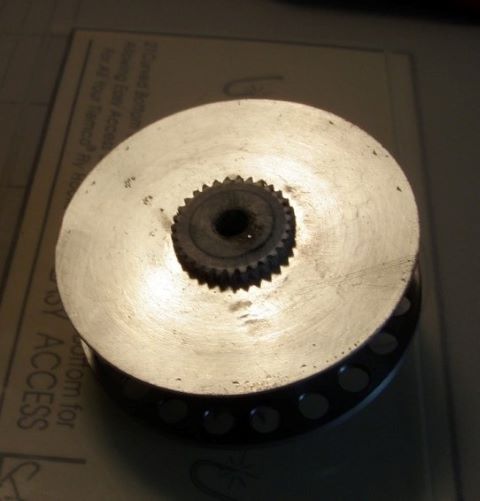

This view of the back of the spool shows the Delrin ratchet, which is one piece with the bushing. The bushing runs on a stainless spindle. Terry says he has a good fit of the bushing bore, that a spin with the finger will cause 6 revolutions (in the absence of a pawl). Editor: for my reels I have been using 5/16 inch ground stainless shaft material and just drilling the bushing with an 8 mm drill. I believe that when Delrin is drilled, the bore is slightly small than the nominal drill size. The fit is good but it is not as free spinning as this.

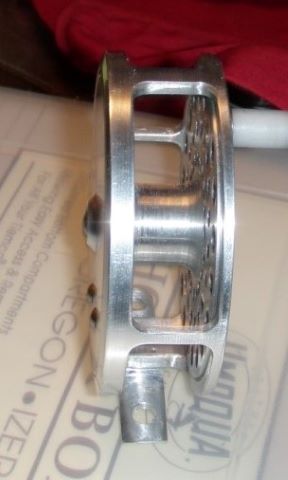

The frame windows were cut with the frame mounted to a rotary table that is at right angles to the mill bed. For a clean inside surface, he made the final pass as a climb cut around the each window.

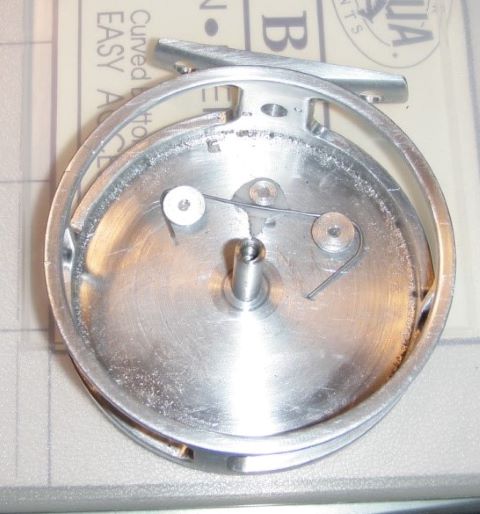

The spring wire was bent freehand and so is not a tidy fit to its two pins. This really has no effect on spring action. Having a bending fixture would help.

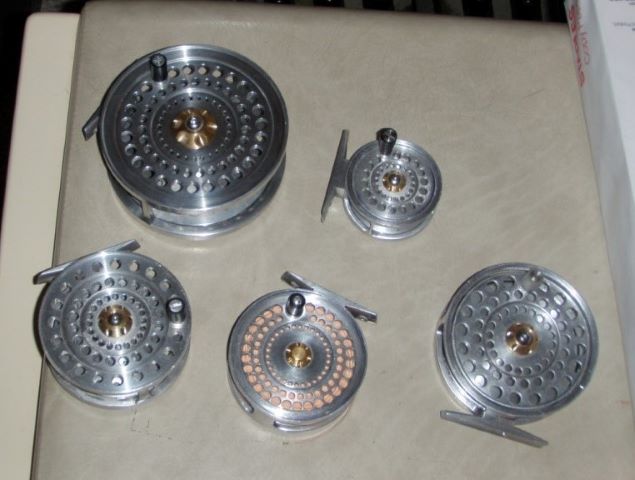

Clockwise from top left are his five reels so far: diameters 4.5 inch, 2.25 inch, 3.5 inch (this one), 2.88 inch, 3.25 inch.
