Billy Pate Reel

I have borrowed this reel from a friend, who has it loaded with monofilament (?). It is a disc drag reel, more complex than the simple click pawl reels that I make. These are my notes for a possible future design.
IMG_4968

The frame anchors a fixed spindle (hidden in this photo), inside a rotating spindle. The rotating spindle is one piece with a ratchet which engages anti-rotation pawls. The face of the ratchet is covered with cork (?). It also holds two ball plungers; I do not understand their function.
IMG_4962

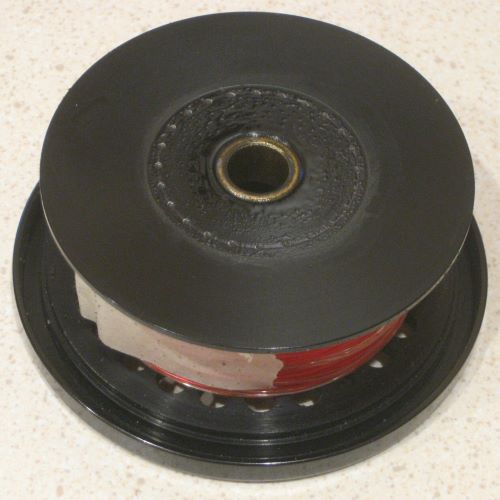

The spool is bronze bushed, and has a front rim that fits around the front of the frame. In the grease here is a ring of dots made by the ball plungers.
IMG_4963

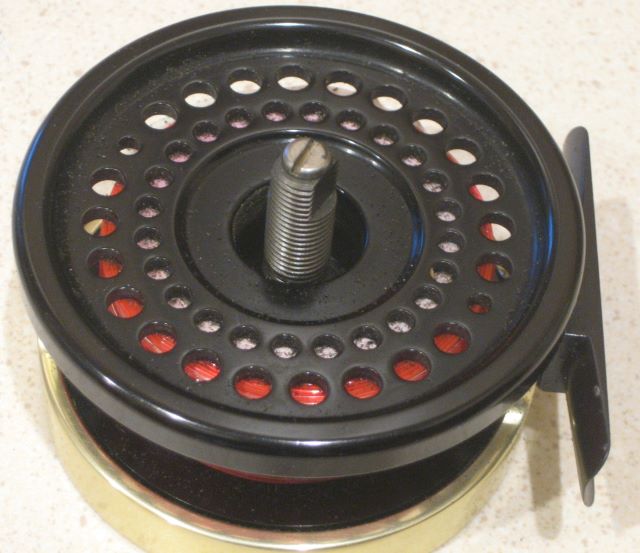

The spindle has a left hand thread (this is a right hand wind reel), flats to engage the crank, and (not visible here) an axial groove for the tab of a washer. The screw at the top of the spindle retains the rotating spindle on the fixed spindle.
IMG_4964

Into the recess around the spindle go a spring, a thrust washer, a teflon washer, and an internally tabbed washer.
IMG_4965

The adjuster screws down over the spring and washer stack. On payout, the crank does not turn (due to the pawls), so the adjuster can be worked.
IMG_4966

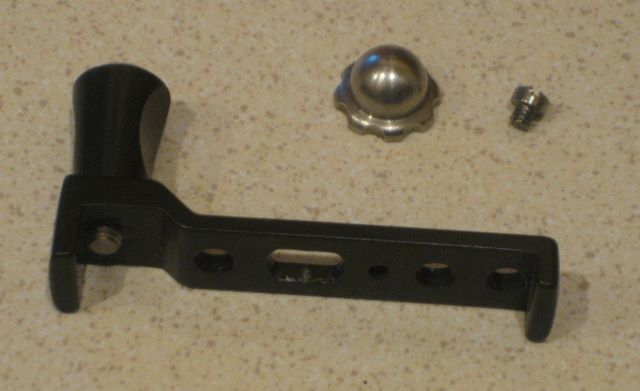

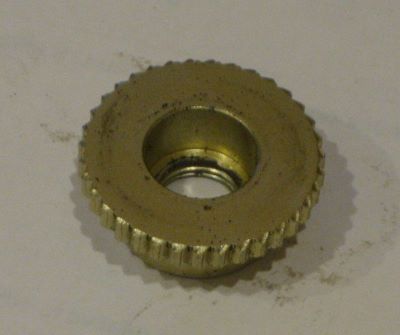

Here is the crank, a cap nut, and a locking screw for the nut.
IMG_4967

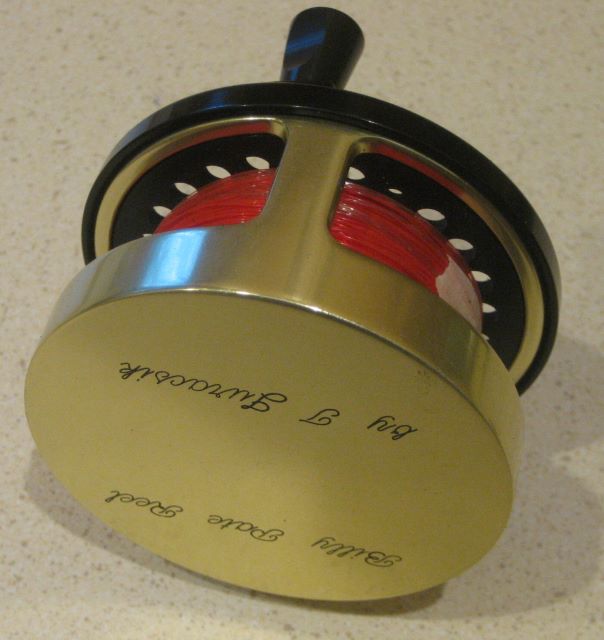

On retrieve, pawls click and the crank moves with the spool (due to friction at the cork disc).
IMG_4969

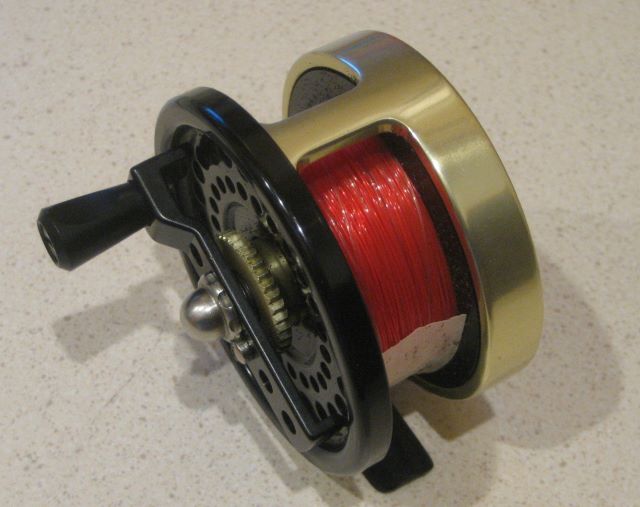

On payout, there is no click (though one could be added with additional mechanism) and the crank does not rotate with the spool, so the adjuster wheel can be worked. Also, the front spool rim could be palmed.
