Spool Porting

The “ports” are holes in the flanges of a spool, made to reduce weight and to provide ventilation for a wet fly line.
IMG_4760

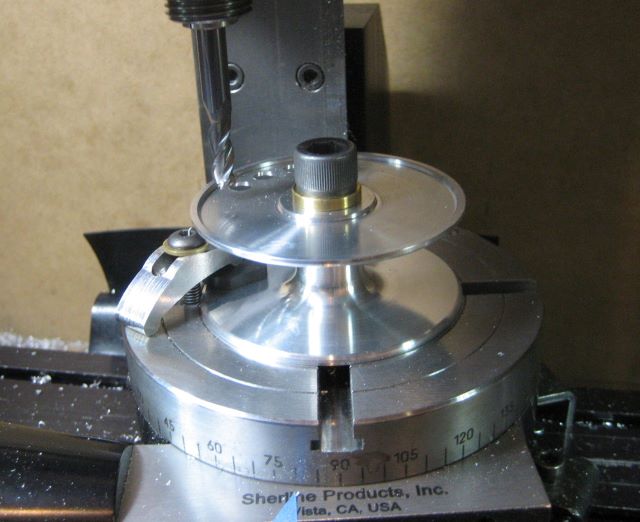

Today I am using my rotary indexer to port a group of 5 spools. I am building them as a batch so I can do a lot of anodizing in one day. In my new bronze frame reel design, the spool and knob hardware are the only aluminum parts.

IMG_4759

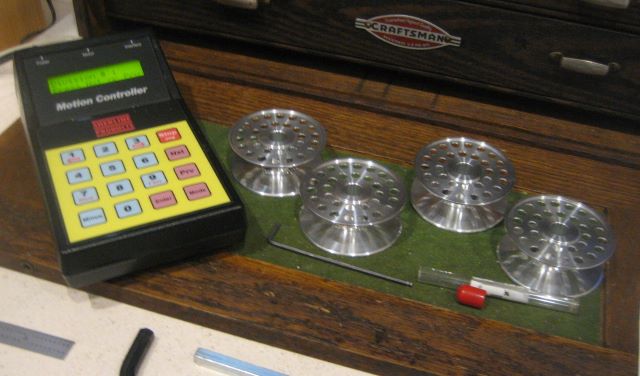

The back flange pattern is very simple, just a ring of 18 holes and a ring of 12 holes. With the indexer, I am able to make all 30 holes in 12 minutes.

IMG_4761

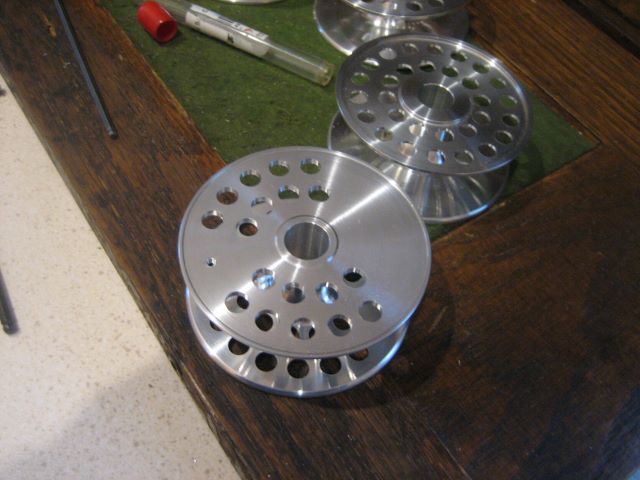

The front flange requires a little more attention. Several ports are omitted, to serve as a counterweight to the knob. And then there are some tool changes to drill and tap the hole where the knob mounts.

Advertisements
This entry was posted in Spool. Bookmark the permalink.

4 Responses to Spool Porting

  1. Greg McGowan says:

    Dave Do you have any plans available for this new reel? Greg McGowan

  2. Marcus Browne says:

    Hi Dave, I am in the market for a rotary table, I have a #2 Chinese mini mill and do you have any suggestions on what size table to buy so I can do 30 holes in 12 min. The porting looks fantastic.
    Cheers,
    Marcus.

    • dave49 says:

      Marcus,
      I have Sherline’s Rotary Indexer. The table is 4 inch diameter, and that is good for work on trout reels. See more on the indexer at my blog post of 15 April 2014.
      The holes were plunged with a center cutting end mill 7/32 inch diameter, through a flange just .035 inch thick.
      Dave
