Fixed Spindle Reel

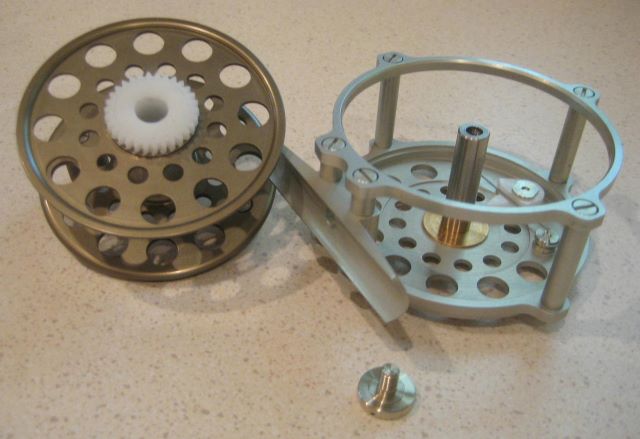

My earlier designs were “rotating spindle”, which require full front and back end plates and a crank to turn the spool. This new design is “fixed spindle” which means an open front end ring, no crank, and a spool that comes off with just 1 fastener.
IMG_3834
The frame is clear anodized aluminum, and the spool end plates are anodized aluminum that has been electrolytically colored, as described in the blog post preceding this one.
IMG_3838

IMG_3847

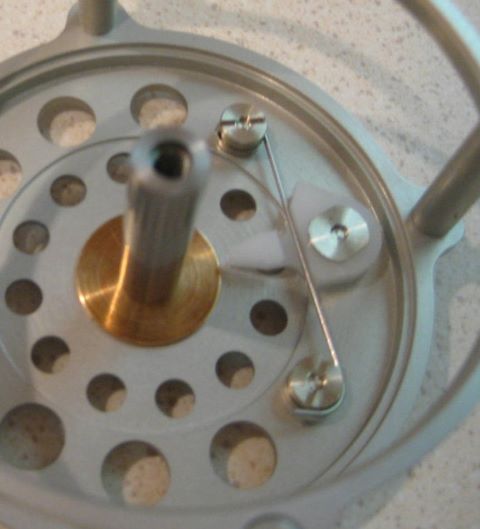

The ratchet and pawl are Delrin, borrowed from an earlier design.
IMG_3848
The open front end ring, lack of a crank, and lightening holes help to reduce weight. This reel is 4.2 oz. It hold WF5F and 100 yd. backing. It is 2.78 inch diameter.
